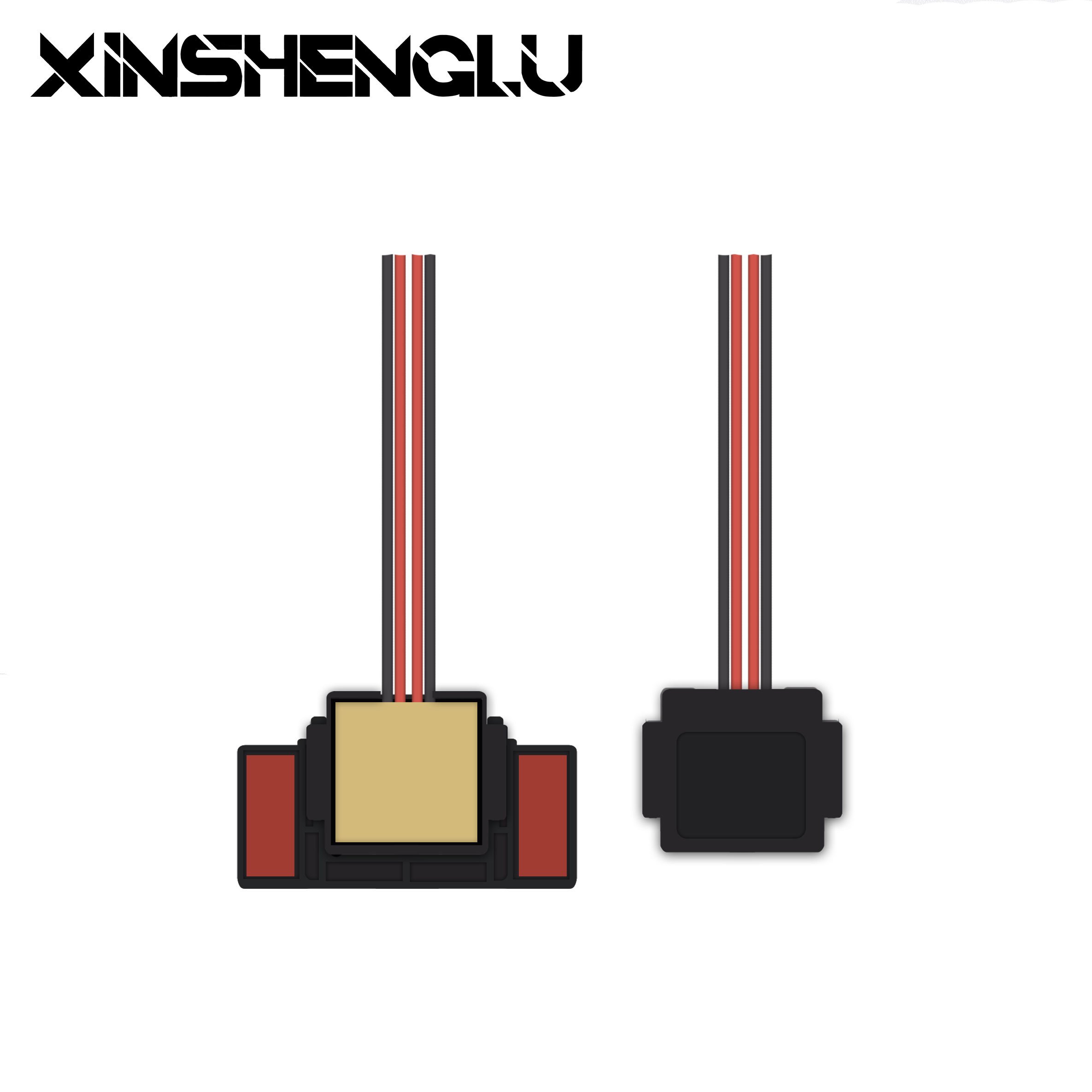

Single Touch Sensor Switch（Mini）
| Product Name | Mirror Single Touch Sensor Switch |
| Usage | LED Mirror |
| Fuction | LED Light On/Off+ Light Dimming |
| Input | DC12V/DC24V |
| Output | DC12V 5A |
| Weight | 13g |
| Size | 5.5*4.2*0.8cm |
Why Mirror Touch Sensor Not Working?
There could be several reasons why your mirror touch sensor is not working. Here are some common issues and troubleshooting steps:
Power Supply Issues:
Check Connections: Ensure all connections are secure and there are no loose wires.
Power Source: Verify that the power source is working and that the sensor is receiving the correct voltage.
Sensor Obstructions:
Clean the Sensor Area: Dirt, dust, or any kind of obstruction on the sensor can interfere with its operation. Clean the area thoroughly.
Placement: Make sure there are no objects or materials that could block the sensor’s field.
Faulty Sensor or Wiring:
Inspect for Damage: Check for any visible damage to the sensor or the wiring.
Replacement: If the sensor or wiring is damaged, you may need to replace them.
Environmental Factors:
Moisture or Humidity: High moisture or humidity levels can affect sensor performance. Ensure the environment is dry.
Temperature: Extreme temperatures can also affect the sensor’s functionality.
Software/Settings Issues:
Calibration: Some touch sensors require calibration. Check the manufacturer’s instructions for details on how to recalibrate the sensor.
Settings: Ensure that the sensor settings are configured correctly. This may include sensitivity settings.
Interference:
Electromagnetic Interference: Other electronic devices nearby can cause interference. Try moving the sensor away from other electronics.
If none of these steps resolve the issue, consulting the manufacturer’s support or a professional technician might be necessary.
This Switch Is An insulated Touch Sensor Switch,It Is Suitable For The LED Which Has Protection Cover Such As Glass, Alec, Plastic, Pottery.
No Need To Find Where The Switch Is In Darkness, Touch The Light Body, You Can Easily Switch On Or Off And Adjust The Brightness.
How To Connect:
1.The Red Line Is Connected With The Input Positive Wire.
2.The Black Line Connect To Negative Input Wire.
3.Then Red And Yellow Lines Connected Lamps.
Operation:
Under The Circumstance Of Insulation Protection,No Need To Touch The Metal Part Directly,Just Can Touch The Glass To Let The Switch Work,With The Characteristic Of Safety, No Mechanical Wear,Can’T See Any Switch Parts In Front Of The Mirror After Installation;
2. It Has Background Light For The Touch Switch Board,It’S Incorporated,When The Connector Power With The Switch,The Background Light Of The Switch Board Will Be On,And It’S Also Normally On.
3. Touch On Or Off Function: When The Body Touching Time Is Less Than 550 (Ms), It Control The Light On And Off.Touch First Time,Light On;Once Again, The Light Will Off.
4. Touch The Dimming Function: When The Body Touching Time Is More Than 550 (Ms), It Control The Light Brightness. Long Time Touch The Lighting Brightness Increase When Loosen It Will Stay On The Former Brightness Level. If Long Press For More Than 3 Seconds, The Light Brightness Is Maximum Brightness; Long Press Touch Again The Light Brightness Gradually Reduce And Stay On The Brightness Level Before Loosening, But If Long Press For More Than
3 Seconds, It Will Stay On The Minimun Brightness Level And Not Change ,Works In A Cycle.
Operating Voltage: 12V-24V
Load Power: Less Than Or Equal 36W
Current: <5A
Switch size: 49 *34 * 15mm Or 1.92 *1.33 *0.59 inch
